Customer-Favourite Commercial Rollup Doors
Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.
SECURE ROLLUP GARAGE DOORS
If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:
- Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
- Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
- StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
- EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS
Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.
The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.
HURRICANE RATED
Door Engineering’s FF70 four-fold door system is tested and approved for High Velocity Hurricane Zones (HVHZ) at 65psf and sizes up to 16’x16’. It meets the stringent standards of the Florida Building Code and is designed for durability, strength and performance in demanding environments. Whether you're protecting critical infrastructure, enhancing safety at fire stations or public works facilities, the FF70 delivers proven reliability, day after day.
FEATURES
- Most reliable apparatus bay door on the market.
- Operators and components are designed and tested for over 1.5 million cycles.
- Reduced installation time and pre-installed glass.
- High speed opening in 7 seconds.
- Factory installed HVHZ impact rated Level E and Level D glazing options.
- Manual operation in power outage event.
- Designed to meet a maximum wind load of 65psf. Contact us for higher wind loads if applicable.
- Locking cane bolts in four locations on the panel.
- Galvannealed sheeting for superior corrosion resistance.
- Standard safety features including safety edges, photo eyes, presence sensor and torque sensing technology (UL325).

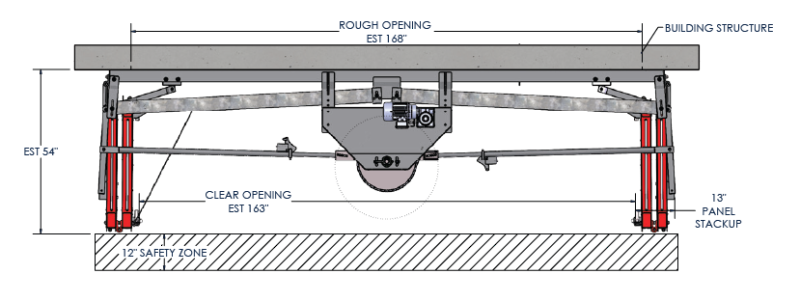

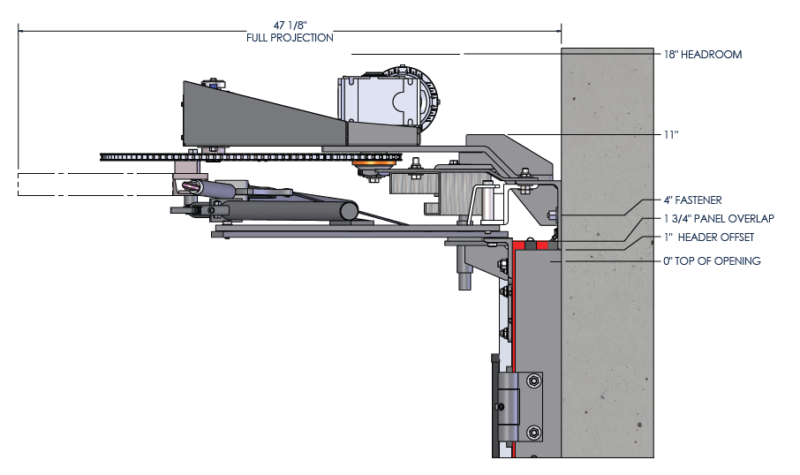

Mounting Conditions
Designed for multiple wall conditions, including:
• CMU
• Precast
• Steel
Mounting Conditions


OPTIONS
Finishes
- Select from standard RAL colors
- Or custom match a color
Sizes
- FF70: 14' wide x 14' tall
- FF70-Flex: Available in custom sizes up to 16' wide x 16' tall

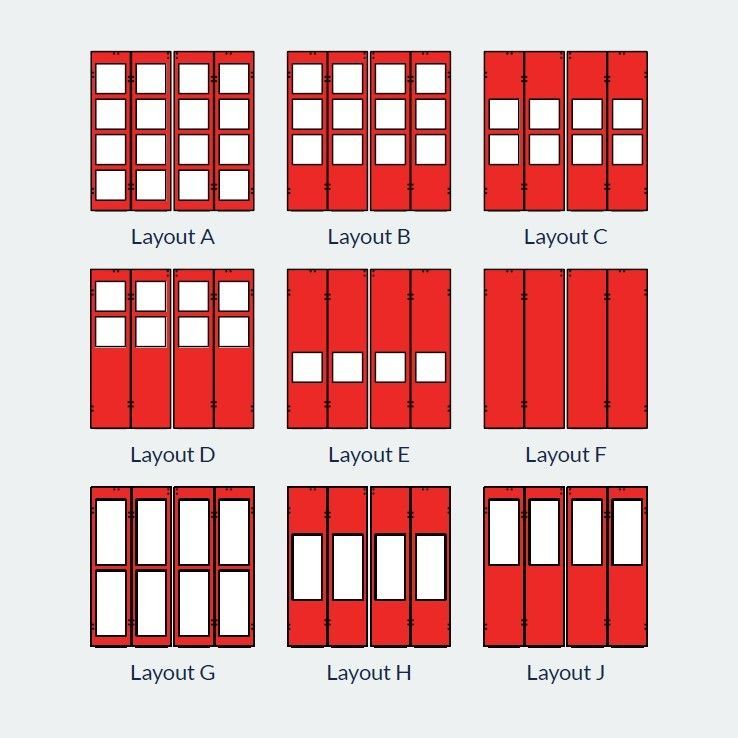

- FF70-custom: Available in custom window configurations and options
Standard Glass
- Pilkington Energy Advantage Low-E, Clear
Enhanced Glass Options
- Pilkington Energy Advantage Low-E, Solargray or Bronze
- Solarban 60 Low-E, Clear, Solargray or Bronze
- Solarban 70 Low-E, Clear, Solargray or Bronze

Power Or Manual Operation
- 110-120VAC single phase
- 208-240VAC single phase
- 208-240VAC three phase
- 460-480VAC three phase
Additional Electrical Options
- Warning Strobe/Horn
- LED Red/Green Light Strips
- Loop Detector
- Additional Pushbutton Stations (Surface or Flush Mounted)
- Multi-Door Command Station (Open up to 6 Doors)
