Customer-Favourite Commercial Rollup Doors
Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.
SECURE ROLLUP GARAGE DOORS
If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:
- Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
- Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
- StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
- EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS
Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.
The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.
Tip-Up Canopy doors are built to endure the heaviest of wind loads.
Ideal for aircraft hangar doors.
SUPERIOR PERFORMANCE
This door system provides a weather-tight seal and maintains a quick, yet stable motion. Get maximum access for your hangar with minimal side room requirements, all with the benefit of long-lasting dependability.
The one piece Tip-Up Canopy hangar door system has multiple wire rope pick-up points attached to the front of the door framing that are run to the counterweight and floor mounted operator assembly. The wire rope provided has a minimum safety factor of 5:1 at each of the pick-up points.
Tip-Up doors arrive to your facility complete including the side tracks, curved top tracks, the operating hardware, pre-wired electrical controls, wire rope pick-up brackets, the automatic sill locks, side and top roller assemblies.
This door system is shop fabricated in modular assemblies to minimize field installation costs.
SPEED
Tip-Up Canopy doors clear an opening at a quick rate of speed. This hangar door system is available in up to 130’W x 32’H.
- 120’ x 30’ Tip-Up Door = 55 Seconds to Open
- 75’ x 20’ Tip-Up Door = 38 Seconds to Open
The high-speed operation of the Tip-Up door minimizes heating and cooling losses and reduces waiting time, increasing productivity and energy efficiency.
VERTICAL MOVEMENT

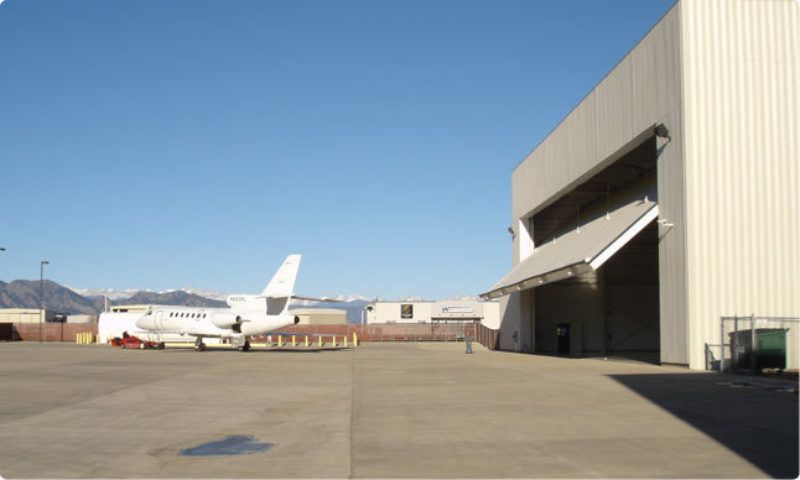

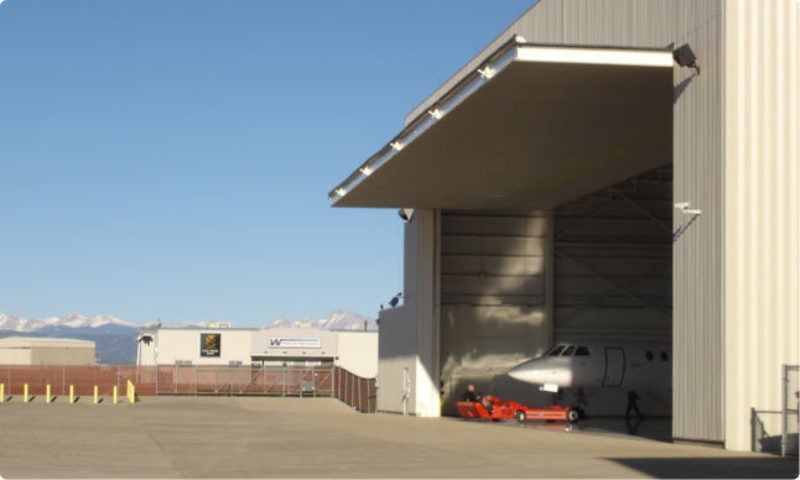

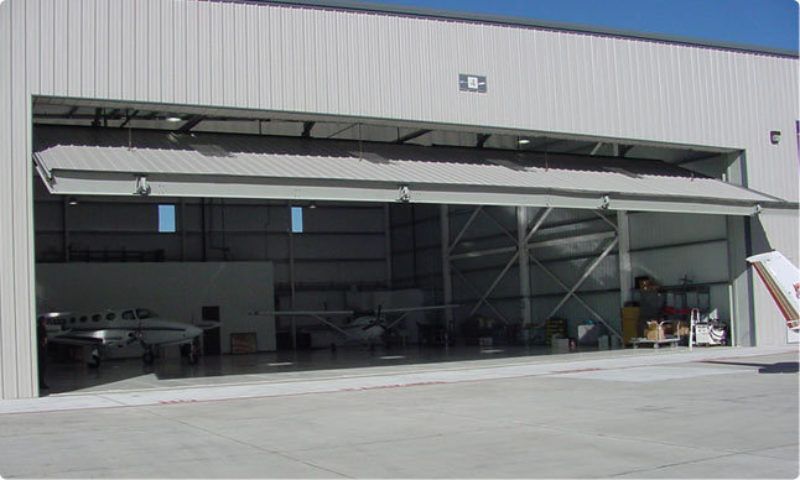

The opening vertical rise movement is followed by a simultaneous tilting and rising motion to the horizontal full open position, with the bottom portion of the door projecting outside to form a canopy.
See our other exceptional aviation door systems too: Bottom Rolling & Aperture along with our unrivaled retro-fit capabilities!
