Craneway Doors

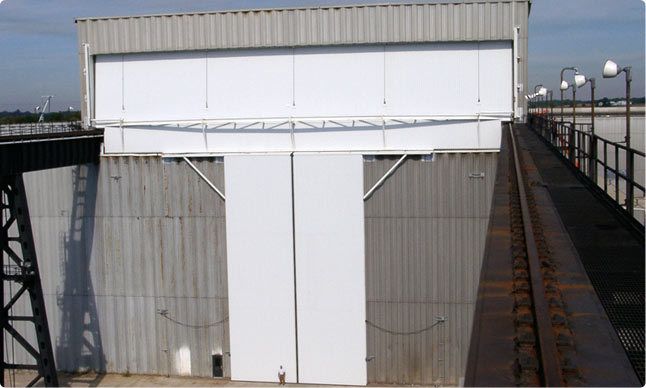

Craneway doors are designed for efficient access of overhead cranes and their loads. Craneway doors are hinged at the top of the header and swing up and in, allowing the crane to pass under it.
Downloads
Customer-Favourite Commercial Rollup Doors
Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.
SECURE ROLLUP GARAGE DOORS
If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:
- Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
- Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
- StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
- EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS
Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.
The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.
Features
- Automatic Brake: Holds door in open position and latching lock arms brace door when closed
- Custom fit around the crane rail
- Lockarms: Secure the door panel against high wind loads
VERTICAL MOVEMENT
The opening vertical rise movement is followed by a simultaneous tilting and rising motion to the horizontal full open position, with the bottom portion of the door projecting outside to form a canopy.
See our other exceptional aviation door systems too: Bottom Rolling & Aperture along with our unrivaled retro-fit capabilities!
VERSATILITY
Typical designs include a hinged upward acting swing door for passage of the bridge crane and swinging or bottom rolling load doors below. Craneway Doors can be manufactured in sizes up to 125’ W x 30+’ H. Flexibility is offered in the sliding material choice used to cover the door section.
ADVANCED DESIGN
Due to the system’s elevation, this product is built resilient against strong wind loads. Secure operating movement is assured.
SUPERIOR PERFORMANCE
Most apparent in design is Door Engineering’s capability to provide a custom fit around the crane rail. This product is fabricated from structural steel sections and cold-formed steel girts. The heavy-duty cables and double drive operator chains increase safety when the top door section is lifted. An automatic magnetic brake holds the door in open position, and the automatic latching lock arms brace the door when closed. The panels are notched around the crane rails and include adjustable seals to effectively seal to the building.
Whether your door systems are standard or unique, our technical sales team, skilled designers and certified installers will ensure quality from illustration to installation.
