DOORWALL ARC3D™ SOLO

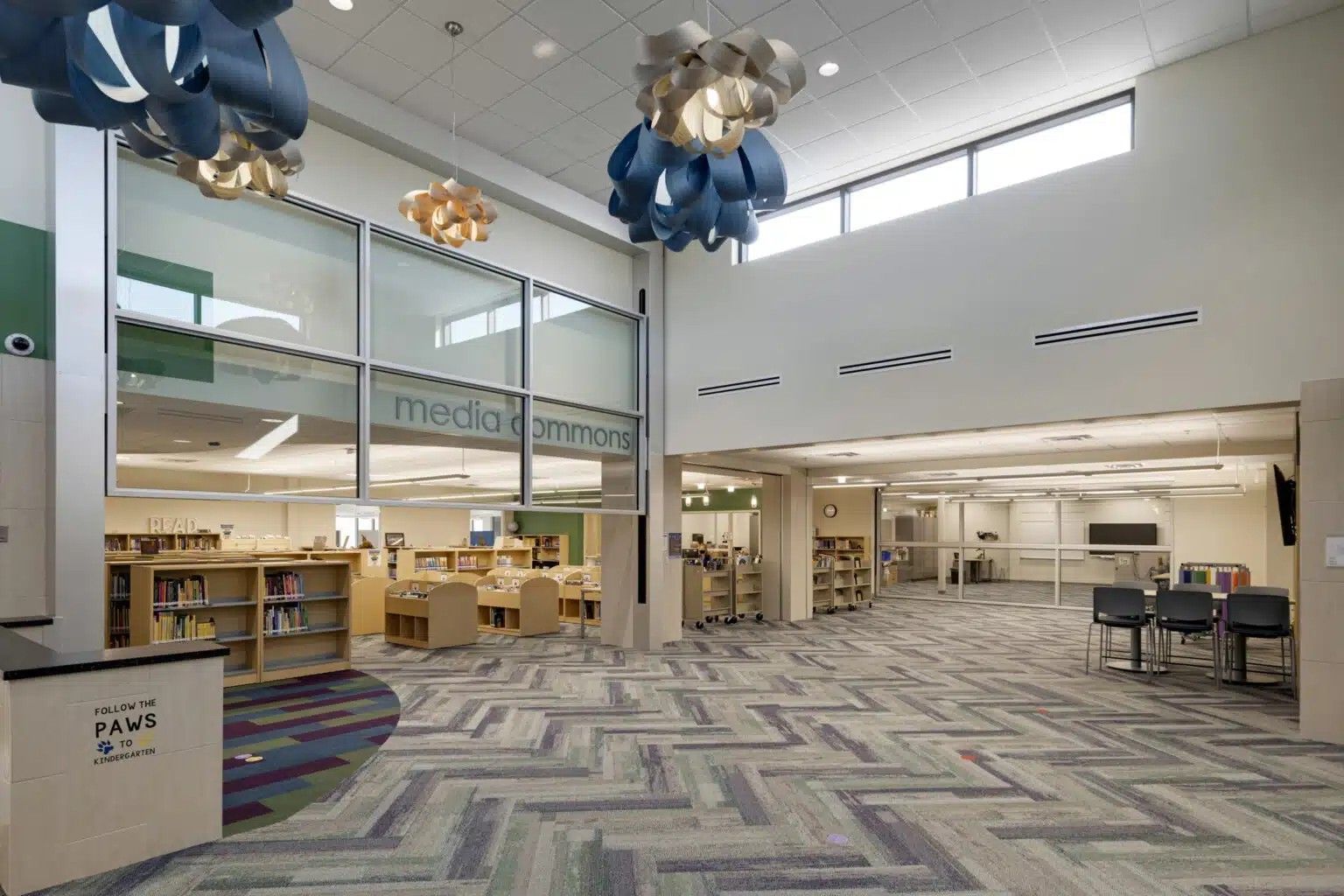

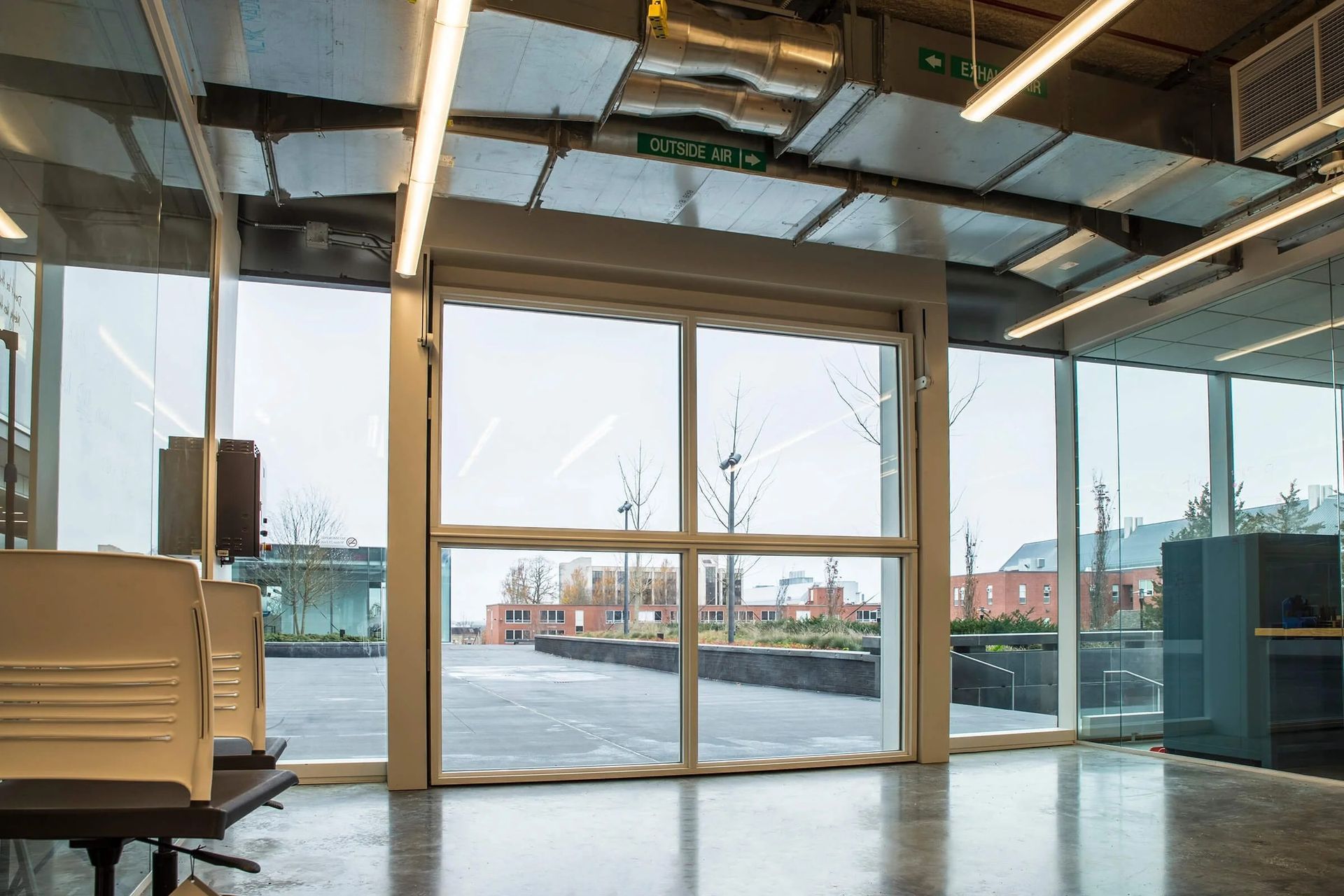

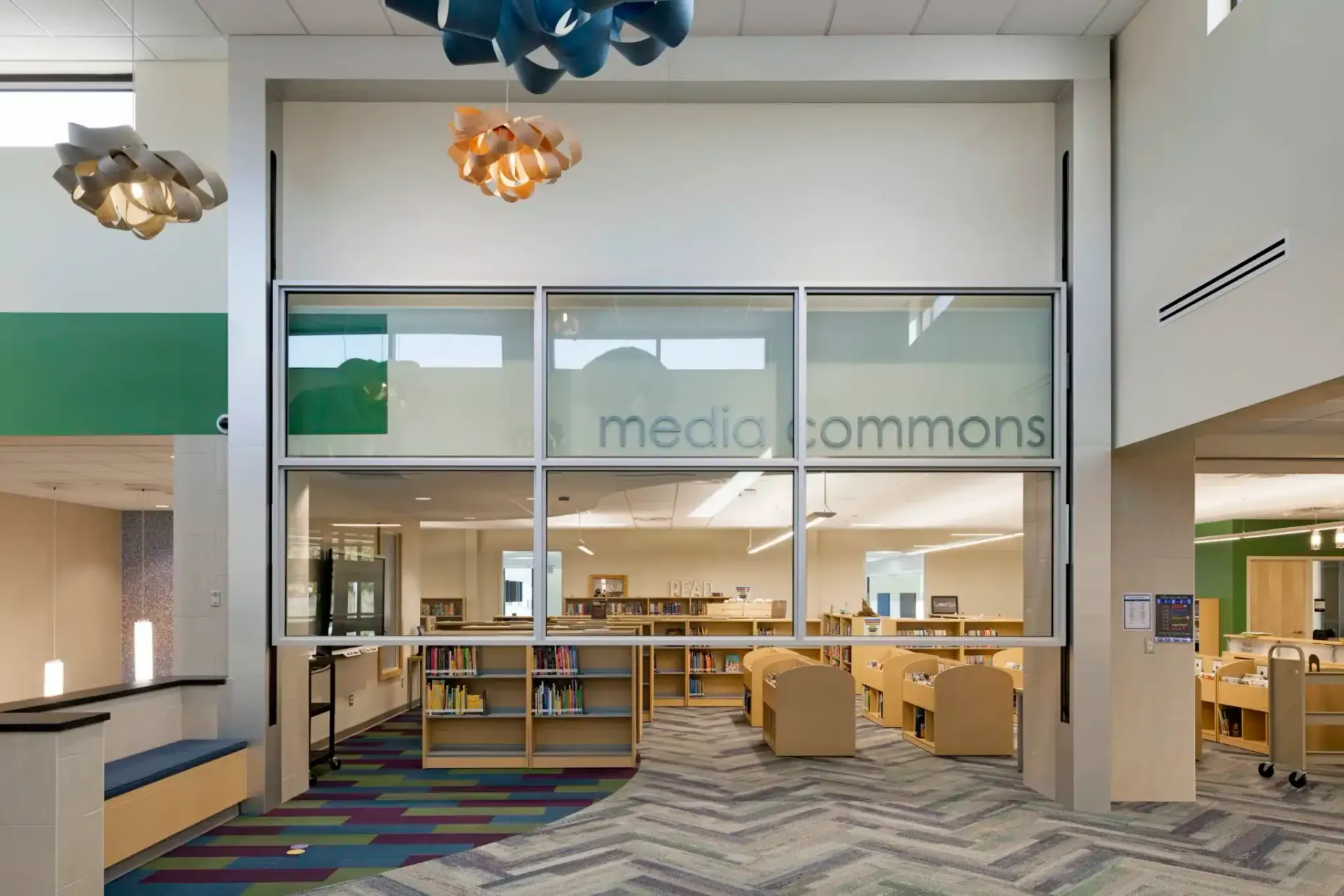

The DoorWall Arc3D™ Solo is an impressive single section vertical wall system that can span custom opening sizes, is appropriate for exterior and interior application and when used on building facades is customizable to seamlessly match adjacent curtain wall.

200 MPH+

Wind Exposure Tested

ASTM E 331

Water Resisance Passed

ASTM E 283

Air Infiltration Passed

U-Factor 0.45

Wind Exposure Tested

TECHNICAL INFORMATION

downloads and details

Model Sizes

  • Widths to 18′-0″ (W) x 14′-0″ (H)
  • Larger Sizes Custom Engineered

Performance

  • Up to 61 PSF (equivalent to 200 mph wind load)
  • Thermal Rating to U-factors of 0.45
  • Thermally Broken Frame Delivering High Performance Energy Ratings

Operation

  • 2HP (3-Phase) Direct Drive Helical Gear Motor
  • Arc3D™ Direct-Drive System
  • Custom Built Control Panel
  • 360 Integrated Design – No Exposed Wires, Springs, Straps or Motors/Belts around the Door Frame

Finish Options

  • Standard RAL Colors
  • Custom Color Formulations

Cladding Options

  • Glass to 2” thick – Engineered to Meet Performance Targets
  • Wood Cladding
  • Performance Metals
  • Stone / Stucco / Masonry
  • Custom Cladding Material Integration – As Per Project Requirements

Installation

  • Door Ships Complete with Structural Tubes
  • Simple Installation
  • Drive System Assembled, Installed & Factory Tested

Safety

  • 3-Part Redundant Fail-Safe Brake System – Proactive Prevention of Section Collapse
  • Constant Contact Auto-Stop Motor Function
  • Integrated Load-Lock Fall Protection
  • UL325 Compliance
Versatile, High Impact Designs

Power and Safety with an elegant design

Our patented Architectural Direct Drive Door System™, is an innovative, space-saving and safe design while also having energy efficient functionality. The Arc3D™ products are award winning operable walls that support contemporary design trends while integrating seamlessly with adjacent project conditions . Create welcoming, open and sophisticated interior or exterior spaces fulfilling design intent objectives.

Expertly Crafted Solutions

Innovation & Beauty Mixed into One Model

Our Arc3D™ Solo is applicable for both indoor & outdoor spaces, creating new elevated experiences that add value to any situation. With custom finishes, vertically & horizontally sliding models, you can make the most out of any situation. Our DoorWall solutions are designed with your needs in mind, incorporating industry leading technology without the need for springs or large track systems.

Crafted with Excellence in Mind

Fully Kitted to Meet your needs

A DoorWall System is one of our upward acting folding, or sliding doors that are installed with the purpose of maximizing space, and adding value to the room. Our DoorWalls come in a variety of fittings and finishes that are custom developed to match your exact use case, and come with expert guidance and maintenance plans to make sure your DoorWall continues to be the highest quality spacial optimizer in your development.
