DOORWALL ARC3D™ Duo

Two-section Bifolding Wall

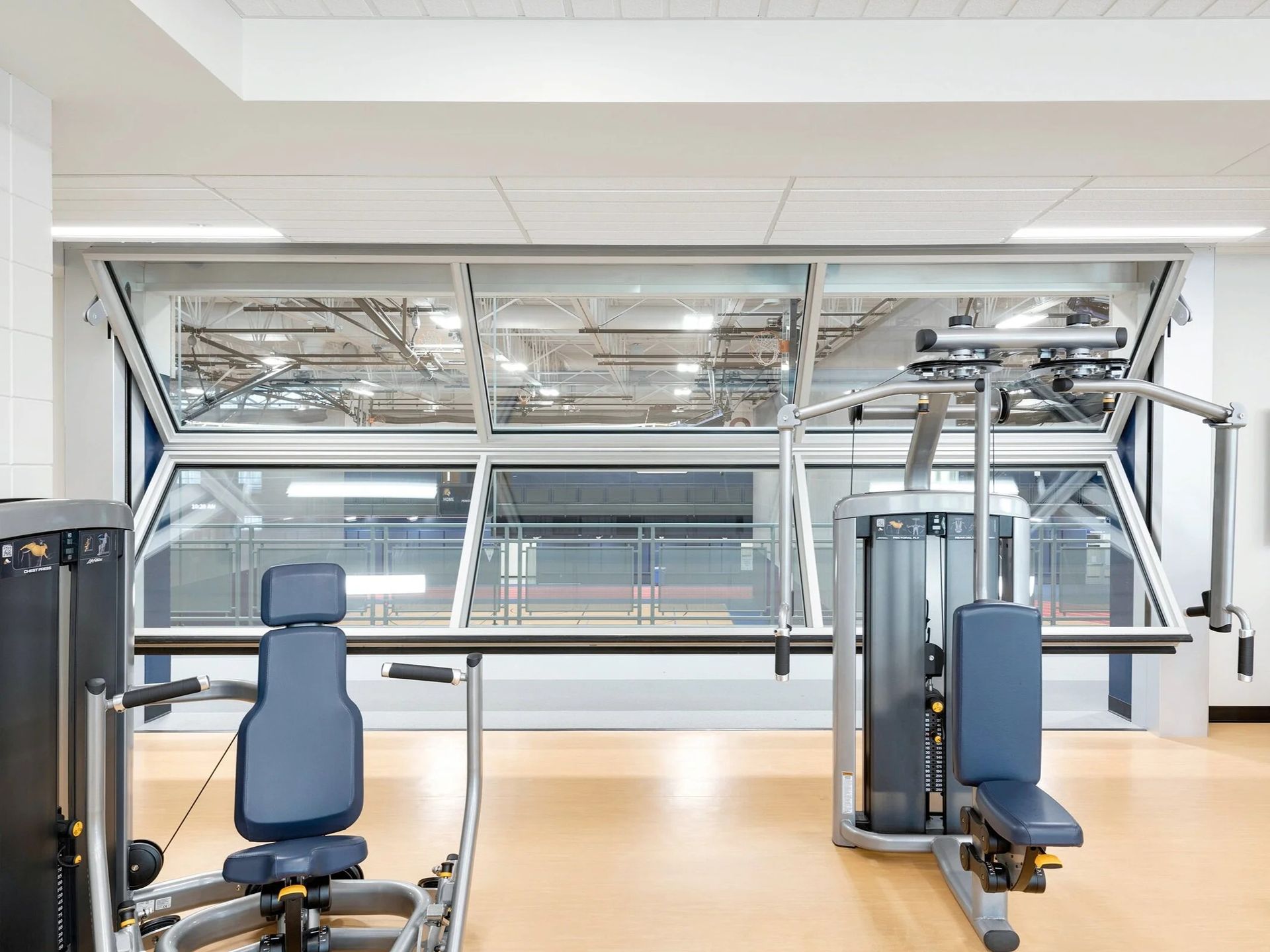

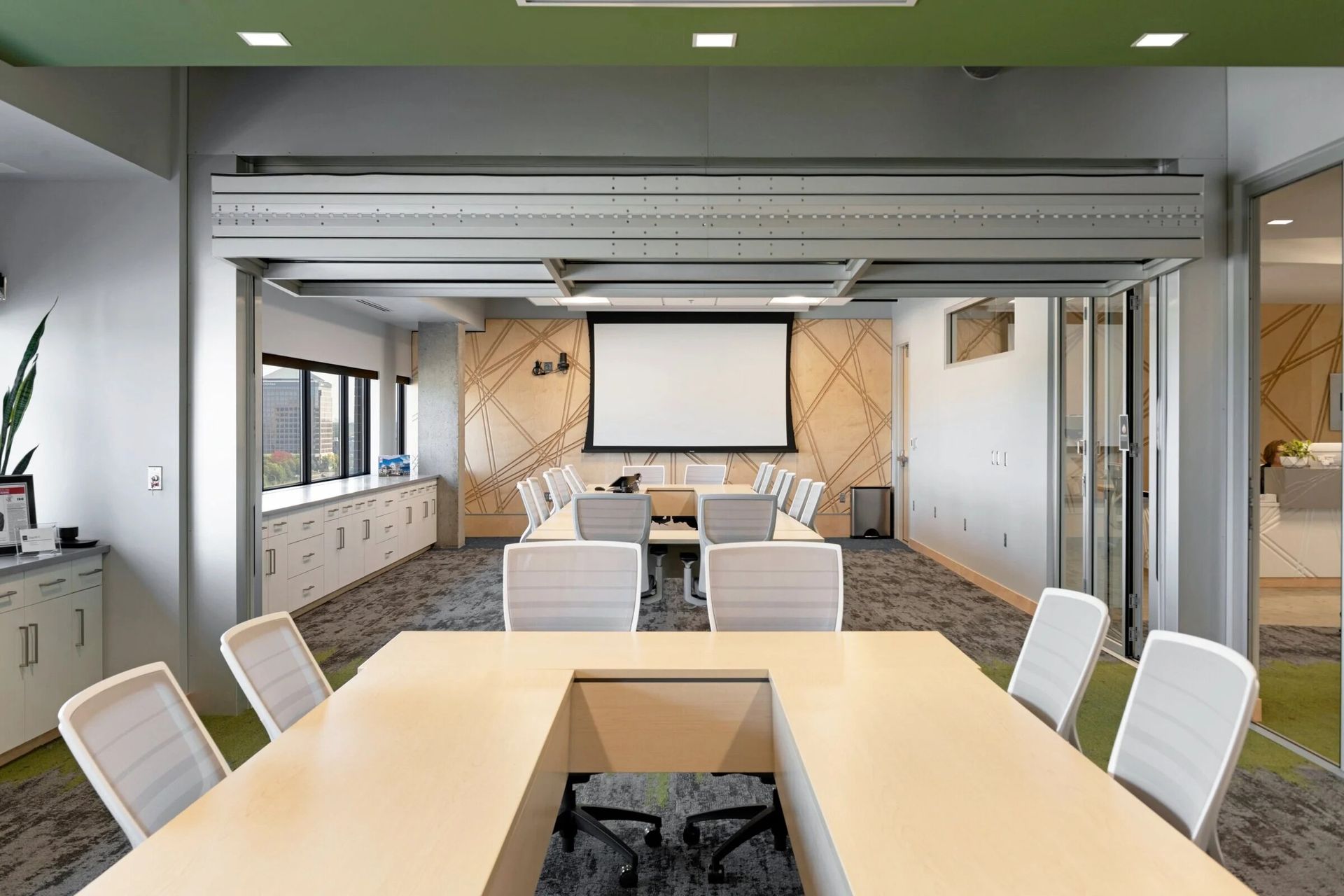

The DoorWall Arc3D™ Duo is considered a best-in-class product for its innovative and simple design, performance and customization possibilities. The Duo minimizes interior and exterior projection, is self-supporting and is commonly selected as the basis of design for its ability to seamlessly match adjacent store front systems.

200 MPH+

Wind Exposure Tested

ASTM E 331

Water Resisance Passed

ASTM E 283

Air Infiltration Passed

U-Factor 0.45

NFRC Rated

TECHNICAL INFORMATION

downloads and details

Model Sizes

  • Widths to 18′-0″ (W) x 14′-0″ (H)
  • Larger Sizes Custom Engineered

Performance

  • Up to 61 PSF (equivalent to 200 mph wind load)
  • Thermal Rating to U-factors of 0.45
  • Thermally Broken Frame Delivering High Performance Energy Ratings

Operation

  • 2HP (3-Phase) Direct Drive Helical Gear Motor
  • Arc3D™ Direct-Drive System
  • Custom Built Control Panel
  • 360 Integrated Design – No Exposed Wires, Springs, Straps or Motors/Belts around the Door Frame

Finish Options

  • Standard RAL Colors
  • Custom Color Formulations

Cladding Options

  • Glass to 2” thick – Engineered to Meet Performance Targets
  • Wood Cladding
  • Performance Metals
  • Stone / Stucco / Masonry
  • Custom Cladding Material Integration – As Per Project Requirements

Installation

  • Door Ships Complete with Structural Tubes
  • Simple Installation
  • Drive System Assembled, Installed & Factory Tested

Safety

  • 3-Part Redundant Fail-Safe Brake System – Proactive Prevention of Section Collapse
  • Constant Contact Auto-Stop Motor Function
  • Integrated Load-Lock Fall Protection
  • UL325 Compliance
Versatile, High Impact Designs

Power and Safety with an elegant design

Our patented Architectural Direct Drive Door System™, is an innovative, space-saving and safe design while also having energy efficient functionality. The Arc3D™ products are award winning operable walls that support contemporary design trends while integrating seamlessly with adjacent project conditions . Create welcoming, open and sophisticated interior or exterior spaces fulfilling design intent objectives.

Expertly Crafted Solutions

Innovation & Beauty Mixed into One Model

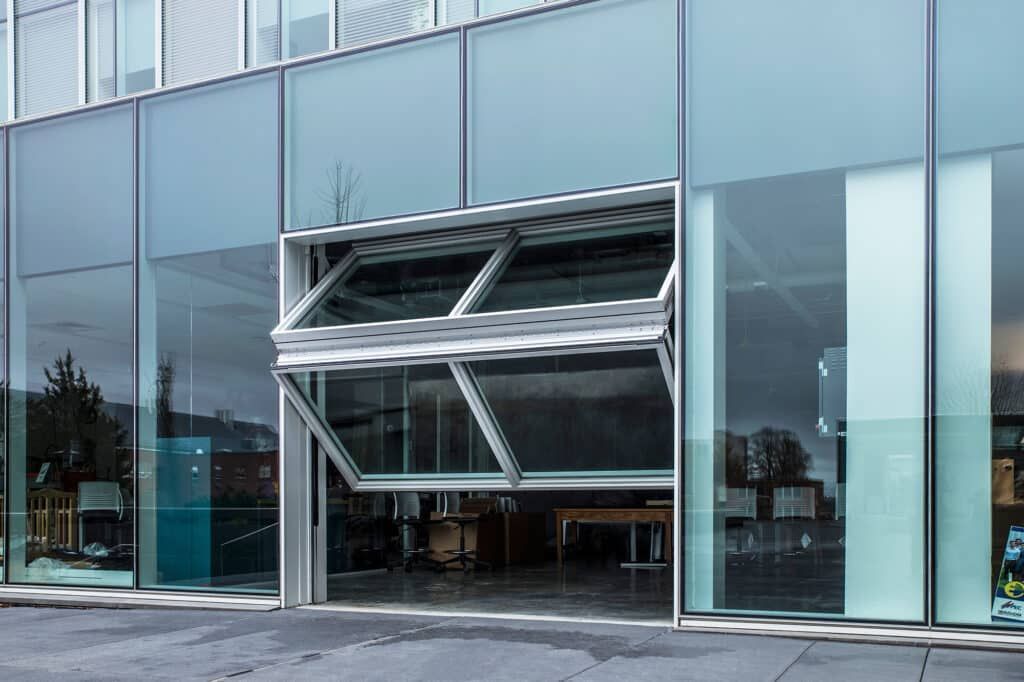

The Arc3D™ Duo from DoorWall Systems makes history with its innovative vertical lift design, components and performance. Proud of its history and well imagined design, this model minimizes interior and exterior projection by using two frame sections.

Crafted with Excellence in Mind

Fully Kitted to Meet your needs

A DoorWall System is one of our upward acting folding, or sliding doors that are installed with the purpose of maximizing space, and adding value to the room. Our DoorWalls come in a variety of fittings and finishes that are custom developed to match your exact use case, and come with expert guidance and maintenance plans to make sure your DoorWall continues to be the highest quality spacial optimizer in your development.
